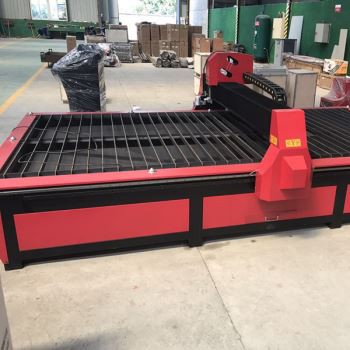

CNC Plasma Cutter

Clean the Torch Body

1. Remove the Torch Parts: Disassemble the torch and inspect the interior.
2. Check for Damage: Examine the threads inside the torch for any signs of mechanical damage.
3. Clean the Interior: Use an electrical contact cleaner and a cotton swab to clean the inside of the torch.
4. Inspect Fittings: Disconnect the torch from its mounting tube and slide the tube back to expose the torch/lead fittings. Ensure there are no leaks or damage to any connections.
5. Remove Dust: Blow out any accumulated metal dust to maintain a clean and efficient torch.

Let me know if you need any more changes!

Clean the Torch Leads

1. Remove Dust and Dirt: Wipe down or blow off the entire length of the torch leads to eliminate any accumulated metal dust and dirt. Metal dust can interfere with the high voltage required to initiate the plasma arc.
2. Inspect for Damage: Check for any kinked or worn hoses, exposed wires, cracked fittings, or other signs of damage.

This routine maintenance will help ensure optimal performance and safety.

Clean Out the Power Supply

1. Remove Metal Dust: Use clean, dry shop air to blow out any accumulated metal dust from the power supply.
2. Prevent Damage: Metal dust can damage power supply components, particularly PC boards, so thorough cleaning is essential.
3. Check Components: Excessive metal dust can also cause malfunctioning of contactors, relays, and spark gap assemblies. Regularly clean these components to ensure proper operation.

This process helps maintain the longevity and performance of the power supply.

Check Torch Cooling System

1. Inspect Coolant Stream: For water-cooled torches, check the coolant stream in the tank for any signs of aspirated air or reduced flow. Ensure the return flow matches the specified gallons per minute.
2. Verify Flow Switches: Check the flow switches on the return line to ensure they are functioning properly. These switches prevent the torch from operating with low coolant flow, which could lead to overheating.
3. Examine Filters and Screens: Inspect the coolant filters and pump screens. Clean or replace them as needed to maintain proper flow.
4. Measure Coolant Conductivity: If available, use a conductivity meter to check the resistivity of the coolant. The reading should typically not exceed 10 micromhos for most systems.
5. Routine Coolant Maintenance: Flush and replenish the coolant every 6 months to keep the system in optimal condition.

This regular maintenance will help prevent overheating and ensure efficient torch cooling.

Check Water Quality

1. Monitor Water Hardness: Ensure that the hardness of the water used with water injection torches does not exceed 8.5 ppm or 0.5 grains. Hard water can lead to mineral deposits on nozzles, reducing their lifespan.
2. Use Water Softeners: If the water hardness is too high, consider using a commercial water softener to improve water quality.
3. Assess Water in Tables: Regularly check the water quality in water tables. Heavy contamination with slag and metal dust can impede the plasma torch's ability to start, potentially leading to performance issues.
4. Prevent Rust Accumulation: Contaminated water may also contribute to rust formation on cut pieces, increasing the need for rework and reducing the quality of finished products.

Maintaining optimal water quality is crucial for the efficiency and longevity of the plasma cutting system.

Checking Plasma Gas Quality

1. Importance of Quality: Ensure that plasma gas quality is optimal to maintain the longevity of parts and achieve high cut quality.
2. Purging Test: In "TEST" mode, hold a clean paper towel under the torch while purging air through the system.
- Look for any signs of contamination.
3. Identify Contaminants: Be vigilant for water, oil mist, or particulate matter, as shop air systems are particularly susceptible to contamination.
4. Regular Maintenance:
- Check filters weekly.
- Empty moisture traps whenever they begin to accumulate water to prevent contamination.

Cleaning the Machine and Surrounding Area

1. Keep it Clean: Rails, gears, and racks should be kept spotlessly clean to ensure smooth operation.
2. Degreasing: Use a degreasing agent and an abrasive pad to effectively remove grease, dirt, and metal dust.
3. Lubrication:
- Lubricate gears with a dry lubricant, such as graphite powder.
- If the bearings have grease fittings, ensure they are properly lubricated.
4. Avoid Lubricating Rails: Do not apply lubricants to rail sections, as this can attract contaminants and lead to excessive wear.

Maintaining the plasma gas quality and keeping the machine clean are essential practices for ensuring optimal performance and longevity of your CNC plasma cutting system.

Leveling and Aligning Rails

1. Check Rail Levelness:
- Periodically check the rails for levelness using a precise level.

2. Inspect Joints:
- Use a piece of tool steel or another precision straight edge to check the joints where rail sections meet. Feel for any misalignment.

3. Correct Misalignment:
- If any misalignment is detected, filing may be necessary to eliminate differences that leveling alone cannot correct.

4. Maintain Constant Distance:
- Ensure that the distance between the rails is constant across the entire length of the system to prevent drag on drive motors.

Aligning and Adjusting Gears and Bearings

1. Check Gear Alignment:
- Ensure that gears are nearly perfectly aligned with the gear racks, avoiding overlap above or below the rack.

2. Adjust Gear Alignment:
- Adjust the alignment until no play is felt between the gears and racks. This adjustment should apply to both rail and cross drives.

3. Inspect Alignment Bearings:
- Check that alignment bearings have minimal play between them and the rail or cross rail surfaces. These bearings are usually mounted on an eccentric.

4. Adjust Bearings:
- Adjust the bearings until no light can be seen between the bearing and rail surface.
- Caution: Avoid over-tightening the bearings.

5. Test for Binding:
- With the drive gears disengaged, roll the beam across the rails to check for any binding.
- Make further adjustments as necessary until the beam rolls freely with minimal vibration and resistance.

Following these steps will help ensure that your CNC plasma cutting machine operates efficiently, with reduced wear on components and improved cutting performance.
