Plasma Cutting Metal

Plasma Cutting Metal Sheet and Pipe Introduction:

Plasma arc cutting is versatile and effective for cutting various metal materials, including stainless steel, high-alloy steel, cast iron, aluminum, and their alloys. The cuts are narrow, smooth, and straight, with quality comparable to precision gas cutting. Plasma cutting also offers faster speeds and a broader range of materials compared to gas cutting.

Plasma Cutting Metal Sheet and Pipe Thickness:

• Low-Current Plasma Arc Cutting (40–100A)

Ideal for manual and CNC cutting, casting grooving, and drilling on thin sheets 1–25 mm.

• High-Current Plasma Arc Cutting (100–200A)

Suitable for mechanized or template cutting of thicker materials 5–50mm.

• High-Current Plasma Arc Cutting (300–400A)

Suitable for mechanized or template cutting of thicker materials 10–100 mm.

Plasma Cutting Metal Sheet and Pipe Materials:

Stainless steel sheet and round pipe, high-alloy steel sheet and pipe, cast iron, aluminum, and their alloys sheet and pipes.

Plasma Cutting Metal Sheet and Pipe Machine:

• Cantilever portable type MS-P/MS-TP model is the most economical option:

1.Adopts CNC technology, accurate and stable.

2.Economical and efficient than traditional cutting machine.

3.Suitable for kinds of metal sheet and pipe materials, stainless steel, alloy steel, low carbon steel, copper, cast iron and chromium.

4.Built-in overheat protection, overvoltage protection and undervoltage protection.

5.Compact size, perfect for small and medium-sized enterprises, even home use.

6 With the integrated keyboard panel and color display screen.

8.Powerful functions, has the functions of plate positioning, seam compensation, breakpoint recovery, original track back-cutting, conversion to cutting, random program starting, perforation point selection, torch random position adjustment and selection, premachining contour, spin parts, mirror, array, scaling and so on.

9. Fast cutting speed, less cutting waste, low noise, high efficiency and long service life.

• Cantilever portable type MS-P/MS-TP model general Specification

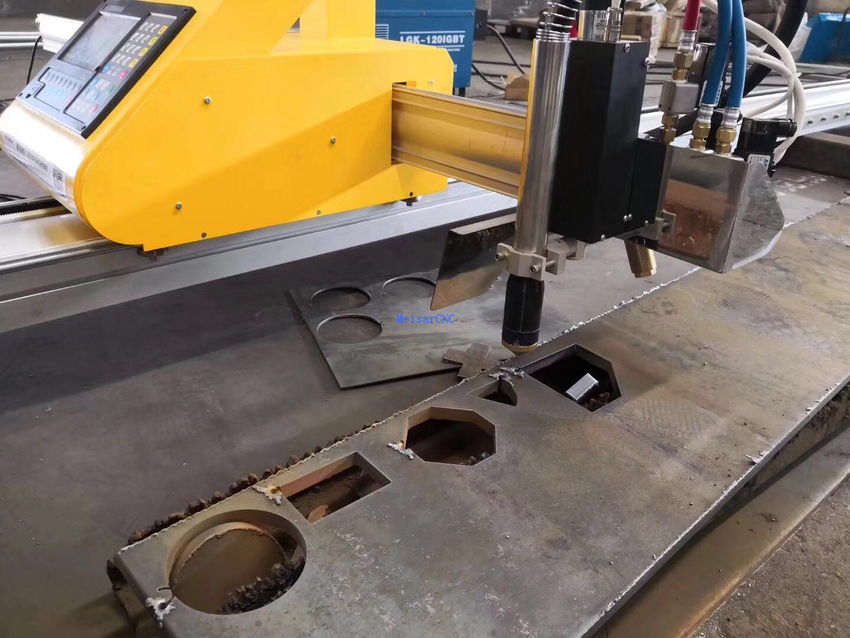

• Gantry type MS-G/MS-GT model is the most effective option:

1.Adopts CNC technology, gantry structure, accurate and stable.

2.Efficient than manual cutting machine.

3.Suitable for kinds of metal sheet and pipe materials, stainless steel, alloy steel, low carbon steel, copper, cast iron and chromium.

4.Built-in overheat protection, overvoltage protection and undervoltage protection.

5. Can cut metal sheet only or to be metal sheet and metal pipe cutting both.

6..Powerful functions, has the functions of plate positioning, seam compensation, breakpoint recovery, original track back-cutting, conversion to cutting, random program starting, perforation point selection, torch random position adjustment and selection, premachining contour, spin parts, mirror, array, scaling and so on.

9. Faster cutting speed, less cutting waste, low noise, high efficiency and long service life.

Gantry type MS-G/MS-GT model general Specification
