CNC Plate and Profile Combination Cutting Machine | Technical Procurement Guide

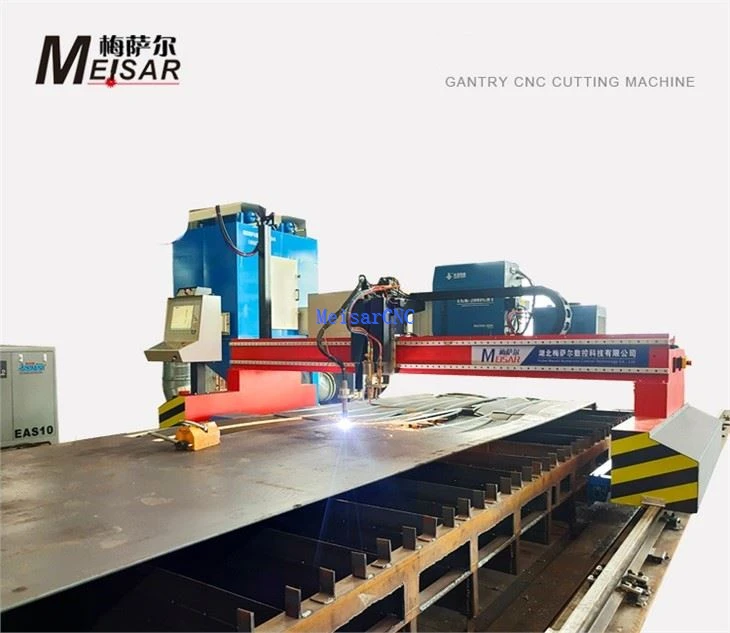

The CNC Plate and Profile Combination Cutting Machine integrates flat sheet/plate cutting and structural profile processing into a single gantry system. By combining a conventional plate cutting table with a heavy-duty rotary axis or auxiliary profile chuck, this machine processes steel plates, H-beams, channels, angles, and pipes sequentially or within a unified layout. This architecture eliminates intermediate material handling, reduces shop floor footprint by up to 40%, and maintains tight positional tolerances across disparate material geometries.
Technical Specifications & Configuration
|
Specification Category |
Parameter Details |
Industrial Standard / Options |
|
Effective Plate Cutting Width |
2,000 mm to 6,000 mm |
Customizable based on workshop layout |
|
Effective Plate Cutting Length |
6,000 mm to 24,000 mm+ |
Modular rail extensions available |
|
Profile Processing Diameter |
Round tube: Φ 50 mm - Φ 600 mm |
Support for square and rectangular tubing |
|
Profile Length Capacity |
Up to 12,000 mm |
Heavy-duty hydraulic/pneumatic chuck clamping |
|
Cutting Technology |
High-definition plasma & Oxy-fuel |
Hypertherm X-Definition / HPR series integration |
|
Drive System |
AC Servo motors with precision planetary gearboxes |
Dual-side longitudinal gantry drive (Y-axis synchronization) |
|
Positional Accuracy |
± 0.1 mm / 1,000 mm |
ISO 9013 compliance standard |
|
Control System |
Industrial CNC (Hypertherm EDGE Connect / Burny) |
Multi-axis simultaneous interpolation (X, Y, Z, A, W) |
Material, Manufacturing & Quality Control
Structural Integrity & Machining Process
• Gantry Beam Architecture: Welded box-type structural steel engineered to withstand high acceleration forces without torsional deflection. The entire weldment undergoes high-temperature annealing (600°C to eliminate internal residual stresses).
• Single-Setup Precision Machining: The main gantry beam and carriage mating surfaces are finished in a single setup on a heavy-duty floor boring mill, guaranteeing parallel alignment between guide rails and rack mounts.
• Guide Rail Calibration: Hardened, ground helical racks and precision linear rails are aligned using laser interferometers to ensure linear straightness across full travel distances.
Rigorous Inspection Protocol
• Geometric & Backlash Testing: Laser interferometers verify axis squareness, pitch, yaw, and positioning repeatability prior to factory sign-off.
• Non-Destructive Testing (NDT): All load-bearing structural welds undergo Ultrasonic Testing (UT) or • Magnetic Particle Inspection (MT) per AWS D1.1 standards to prevent micro-fissures.
• Factory Burn-In Test: A 72-hour continuous dry-run test under simulated dynamic load is executed to evaluate thermal stability, driver response, and electrical noise immunity.
Application Suitability & Visual Evidence
Ideal Industries
• Structural Steel Construction: Coping, slotting, and profiling H-beams and structural tubes alongside gusset plates.
• Shipbuilding & Marine Engineering: Fabricating web frames, stiffeners, and deck plates within a streamlined workflow.
• Heavy Machinery Manufacturing: Cutting crane booms, excavator chassis members, and mining equipment structural frames.
Material Compatibility
• Carbon Steel: 6 mm to 100 mm (Oxy-fuel); up to 32 mm production pierce capacity (HD Plasma).
• Stainless Steel & Aluminum: Precision plasma cutting supported by automated inert shielding gas consoles to control dross formation and edge metallurgy.
Supplier Evaluation Framework
When auditing manufacturers for hybrid plate and profile cutting systems, verify the following operational capabilities:
In-House Heavy Machining Assets: Ensure the supplier owns large-scale floor borers capable of machining full-length gantry structures in a single pass to prevent long-term mechanical drift.
Native Multi-Axis Controller Integration: The CNC controller must natively manage synchronized interpolation between plate cutting (X, Y, Z) and profile rotation (A, W axes) without relying on unstable third-party macro workarounds.
Post-Processor Compatibility: The system must interface directly with major nesting suites (SigmaNEST, ProNest, FastCAM) without forcing manual G-code adjustments for bevel cuts or pipe intersections.
Procurement Decision Framework & ROI
Footprint vs. Throughput Analysis: Evaluate current shop floor utilization. Consolidating a standalone pipe cutter and a plate gantry into one machine eliminates overhead crane transfers between stations.
Duty Cycle Requirements: For multi-shift structural fabrication plants, specify liquid-cooled heavy-duty plasma torches and automated slag removal drag chains to maintain continuous uptime.
Utility Prerequisites: Verify factory power stability (± 10% voltage regulation for high-definition plasma inverters) and compressed air quality (ISO 8573-1 Class 1.4.1 dry air filtration for consumable longevity).
Frequently Asked Questions (FAQ)
Q: Can the machine perform plate cutting and profile cutting simultaneously?
A: Most standard gantry configurations utilize a shared longitudinal rail system where the profile chuck is positioned alongside or at the end of the plate cutting table. While the gantry bridge services both zones, simultaneous active cutting on both stations is limited by controller channel assignments. Typically, operators nest plate programs on one end while loading or unloading profiles on the auxiliary chuck to maintain uninterrupted workflow.
Q: How does the system compensate for thermal deformation during thick plate oxy-fuel cutting?
A: The gantry is equipped with thermal shielding plates protecting drive motors and linear bearings from radiant heat. Furthermore, the CNC software features dynamic torch height control (THC) utilizing capacitive and ohmic sensing to maintain a consistent standoff distance, compensating for localized plate warping during preheating and piercing.
Q: What CAD/CAM and post-processor support is included?
A: The machine integrates directly with industry-standard nesting suites, including ProNest, SigmaNEST, and FastCAM. Standard DXF/DWG files convert directly into validated G-code, automatically managing lead-ins, common-line cutting, and bevel angles for complex profile intersections.
