Open Type Fiber Laser CNC Cutting Machine

Open Type Fiber Laser CNC Cutting Machine Suitable for requirement:

Cutting Width Range:1.5-2m

Cutting Length range:3-6m

Laser source: On or above 3000w, such as 3000W, 6000W



Open Type Fiber Laser CNC Cutting Machine feature and Specifications:

Open type fiber laser cutting machines are designed for flexibility and accessibility, ideal for large-format or heavy material processing. Below are typical technical specifications for the open type model (common in industrial applications):

1. Core Technical Parameters

Item	Parameter
Laser Power	Raycus or MAX 3000W, 6000W (single-mode or multi-mode fiber laser)
Laser Wavelength	1.06μm (standard for fiber lasers)
Worktable Size	3000mm × 1500mm (no more than 10m × 2.5m)
Max Cutting Speed	Up to 100m/min (varies by material thickness)
Positioning Accuracy	±0.03mm
Repeat Positioning Accuracy	±0.02mm
Cooling System	Water cooling (22KW power consumption)
Control System	Cypcut/FSCUT (user-friendly CNC interface)
Transmission	Double-drive gantry (servo motors + linear guides)



2. Cutting Capabilities by Material

Material	Max Thickness	Typical Cutting Speed (Example)
Carbon Steel	25–30mm	0.2–10m/min (varies by thickness)
Stainless Steel	15–20mm	0.2–6m/min
Aluminum	12–20mm	0.2–43m/min (3mm thickness: ~43m/min)
Copper/Brass	10–12mm	0.2–35m/min



3. Key Features

Open Workspace: No enclosure, allowing easy loading/unloading of large or heavy materials.

High Flexibility: Compatible with automated loading systems (conveyors) for mass production.

Cost-Effective: Lower initial investment compared to enclosed models, suitable for small-to-medium enterprises.

Maintenance Accessibility: Open structure simplifies component inspection and repair.



4. Operational Notes

Safety: Requires additional safety measures (e.g., laser safety barriers, fume extraction systems) due to open design.

Environmental Compliance: Must integrate external exhaust systems to manage fumes and dust.

Efficiency: Optimized for high-speed cutting of thin-to-medium thickness materials (1–20mm), with adjustable gas pressure (nitrogen/oxygen/air) for different materials.

This specification balances power, precision, and adaptability, making it a versatile choice for metal fabrication, automotive, and aerospace industrie



Hubei Meisar CNC Open Type Fiber Laser CNC Cutting Machine MS-FL Advantages

1. The Third Generation Aviation Aluminum laser Gantry frame

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries.

Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

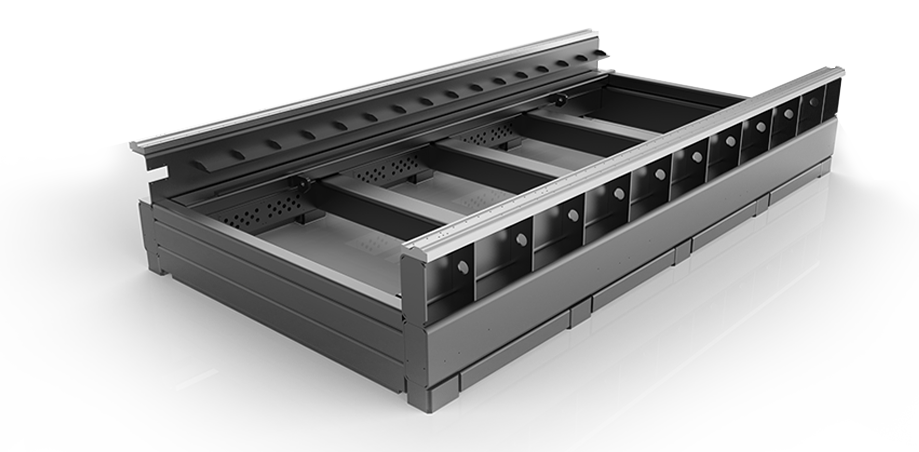

2. The Segmented Rectangular Tube Welded Bed

The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes.

Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.

High strength, stability, tensile strength, ensuring 20 years of use without distortion;

Thickness of rectangular pipe wall is 10mm,and weights 4500 kg.

3. Super Laser cutting head

• 1.it can focus automatically.

• Without manual focusingThe software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness.

• The speed of automatically adjusting focus lens is ten times of the manual adjusting.

• Bigger adjustment range. Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.
• Long service life Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.



4. Stable Components

Hubei Meisar CNC Open Type Fiber Laser CNC Cutting Machine MS-FL is equipped with German Atlanta rack, Japanese Yaskawa motor and German Neugart reducer. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to 10 years.



5. Quality Management System

Hubei Meisar CNC is one of the biggest suppliers among cutting equipment in middle China. Company mainly engage in CNC laser cutting machine, CNC plasma cutting machine, CNC Pipe/Tube cutting machine, etc. Hubei Meisar CNC has 14 years history, serving more than 80 countries and regions. Hubei Meisar CNC has strict quality control system and quality management team. Strictly adhere to the general standards of the industry and company guidelines. Implement quality monitoring from every aspect of R&D, production and after-sales of laser equipment, to ensure that each device can meet customer's requirements.

For every part of the machine, Hubei Meisar CNC is strictly control the quality.

Not only require suppliers to provide quality inspection reports, but also strict quality monitoring will be carried out when the parts are in the factory.

Laser Source Test	Laser Head Test	Square Track Detection	Rack Detection	Motor / Reducer Testing
The width, repetition frequency and peak power of the laser pulse are detected by using the photoelectric detectors and oscilloscope.	Stability test and aging test for laser head.	Testing the flatness and straightness of the track to ensure that the machine runs smoothly.	The precision and consistency between gear and rack are mainly tested	We will adjust the suitability of the machine through continuous empty experiments.

6. Process Control

The assembly process of the machine will also affect the customer's feeling when using the machine, Therefore, in the process of machine assembly, Hubei Meisar CNC from the most basic machine bed to the final assembly of the whole machine is strictly followed by the quality management standard.

Machine Bed Welding	Gantry Milling	Guide Rack Mounting	Other Hardware Parts Installation
The bed frame is welding by 10mm thick and high strength square.	Meisar CNC has its own gantry milling.	The straightness of guide rack is guaranteed by using laser collimator	we install the motor reducer strictly according to standard production process and standard

7. Pre-delivery Inspection

The machine will accept a number of quality testing, respectively, from the performance, stability, fit, practical and other aspects of consideration, for non-compliance with the standard part of the arrangements for debugging and maintenance, To ensure that the final factory, the machine is in the best condition.

Inspection Report	The Whole Machine Is Fitted With a Load-Free Test	Material Shearing Test	Machine packing
Every component of the machine, every performance, every parameter is carefully tested.	Ensure the cutting accuracy through laser interferometer checking and 24 hours testing, And make sure the machine will be in the best condition.	Before delivery, different metal materials will be cut, observe the cutting effect, and then adjustment according to the need	The laser equipment requires multiple protective measures during the packing process to ensure that each component is not affected by the collision
