Steel Tube Cutting Machine Application
The Steel Tube Cutting Machine is an essential piece of equipment widely used in various industries for precise and efficient cutting of steel tubes. Its application spans construction, automotive manufacturing, shipbuilding, furniture production, and many other fields where steel tubes are integral components.
This machine offers numerous advantages, including high accuracy, speed, and consistency, ensuring that each cut meets exact specifications. By automating the cutting process, it significantly reduces manual labor and increases overall productivity. The versatility of the Steel Tube Cutting Machine allows it to handle different tube sizes and thicknesses, making it a valuable asset for diverse industrial needs.
Moreover, the use of advanced technology in these machines promotes waste reduction by optimizing material usage, contributing to cost savings and environmental sustainability. Its easy-to-operate interface and low maintenance requirements facilitate smooth workflows and minimal downtime.
In summary, the Steel Tube Cutting Machine enhances manufacturing efficiency, supports high-quality production, and drives innovation across multiple sectors. Its positive impact on precision and productivity makes it a vital tool in modern industry, helping businesses achieve excellence and growth.
Steel Tube Cutting Machine MS-TP
Most metal trusses are made from steel tubes, and the process of creating a truss involves cutting the tubes into the appropriate shapes and then welding them together.

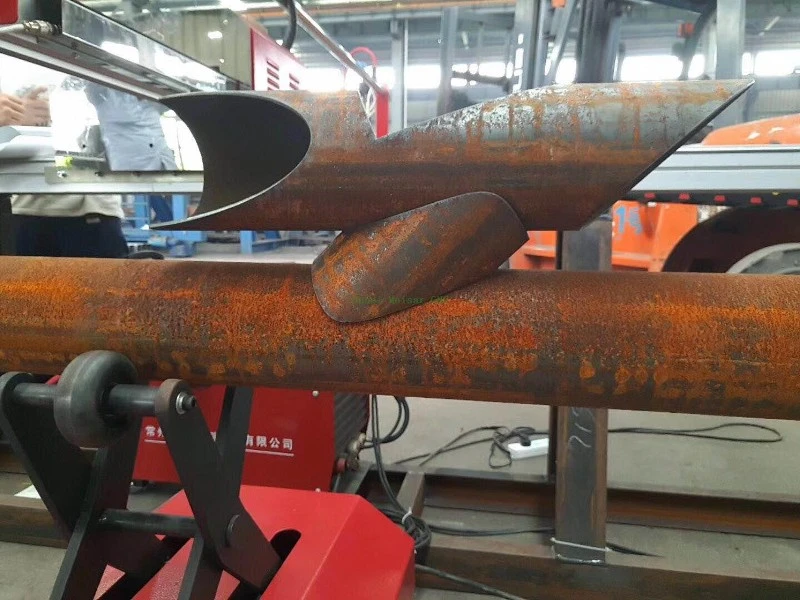

- Steel Tube Cutting Machine MS-TP cutting samples:
- Steel tube cutting machine MS-TP Product Introduction
1. Color LCD screen, full English operation.
2. Can achieve any round pipe profile processing.
3, Pipe end cut off, pipe middle hole cut function, you can arbitrary set the profile.
4. Shrimp elbow cut, can set the number of section, elbow angle.
5. Eccentric saddle head cutting; mother tube hole cutting can be used with the riding type, plug-in branch.
- Steel tube cutting machine Structure Features
1. MS-TP portable intersectional cutting machine can achieve round tube cutting, can greatly save customers cost, especially save persons;
2. Machine guide rail is with 24KG / M fine grinding guide rail, has heavy bearing capacity, long life and other advantages.
3. Chuck motor is with high precision Taiwan Delta servo motor drive, low noise, high precision, long service life;
4. Tube support frame is using finishing screw; when support the workpiece, can save more effort.
- Steel tube cutting machine Parameter Outlook
Axis quantity: 3 axis, 2 linkage axis
Suitable Diameter: 30-300mm, 60-600mm(Not standard diameter, need specially customize)
Bevel function: No bevel cutting function (Bevel )
Standard Loading: <500Kg (can adjust)
Cutting Mode：Plasma or add flame cutting
Tube Material: Carbon Stainless Alloy steel, zinc etc
Tube Wall Thickness: 0.1-25mm
Cutting Speed: 0-6500mm per minute
Optional item: Delta/ Japan Panasonic servo
NC plasma generator(Power Source), LGK-63IGBT, LGK-100IGBT, LGK-120IGBT
Sheet CNC cutting function
Steel Tube Cutting Machine MS-TP Application in truss structures:
What is the truss structure: This structure actually refers to the truss beam, it is a beam structure, in some factories or large stadiums, bridge buildings can be seen. The design is a roof structure, which can be used as a roof truss, and the whole span is slightly larger. It also has many forms, which are more stable than a triangle, or a rectangle or an arch.
The so-called steel frame structure is a multi-layer steel frame, which is composed of beams and columns. It can withstand both horizontal loads and vertical forces. This deformation is large, generally speaking, the construction type selected should not exceed 20 to 30 layers.
It is characterized by relatively high strength, but its own gravity is relatively light, and it can be suitable for the construction of buildings with relatively large spans. Or heavy duty will basically use high-strength steel, so improve its yield point strength, to meet the needs of super high-rise buildings.
The Application of Steel Tube Cutting Machines MS-TP in Truss Manufacturing
In the modern construction and architectural industry, the demand for efficient, precise, and high-quality truss structures is ever-increasing. Trusses, known for their strength and versatility, play a vital role in supporting roofs, bridges, towers, and various frameworks. The integration of steel tube cutting machines into the truss manufacturing process has revolutionized the industry, offering significant improvements in productivity, accuracy, and overall quality.
Steel tube cutting machine MS-TP are specially designed tools that enable manufacturers to cut steel tubes quickly and precisely according to specific dimensions and angles. Their application in truss manufacturing offers numerous advantages:
1. Enhanced Precision and Consistency
Accurate cutting of steel tubes ensures that each component fits perfectly within the truss design, leading to stronger and more reliable structures. Steel tube cutting machines use advanced technology such as CNC (Computer Numerical Control), allowing for repeatable precision that minimizes human error and material wastage.
2. Increased Efficiency and Productivity
Automated steel tube cutting machines can perform swift and complex cuts, drastically reducing the time required in the preparation phase of truss manufacturing. This increased operational speed helps manufacturers meet tight deadlines and handle large-scale projects with ease.
3. Versatility and Flexibility
Modern steel tube cutting machines support various cutting methods-such as flame and plasma, and can handle tubes of different sizes and thicknesses. This flexibility enables manufacturers to produce a wide range of truss designs tailored to different structural needs.
4. Improved Safety
By automating the cutting process, steel tube cutting machines reduce the need for manual labor in potentially hazardous cutting operations, contributing to a safer work environment. Operators can focus more on supervision and quality control rather than direct exposure to cutting tools.
5. Cost-Effectiveness
Although the initial investment in a steel tube cutting machine may be significant, the long-term benefits include reduced material waste, lower labor costs, and faster production cycles. These factors collectively enhance profitability and project viability.
In conclusion, the incorporation of Steel tube cutting machine MS-TP into truss manufacturing embodies the spirit of innovation and progress. By embracing advanced cutting technology, manufacturers can produce strong, precise, and aesthetically superior trusses that meet the evolving demands of the construction industry. This positive synergy of technology and craftsmanship not only enhances product quality but also supports sustainable growth and development in the field of structural engineering.
