Square Pipe Cutting Machine MS-TR
Square Pipe Cutting Machine by Hubei Meisar CNC also called rectangle pipe cutting machine, is one of the most intelligentized CNC cutting machines, it is designed specially for steel square tube and rectangle tubes cnc profile cutting solutions.
Square Pipe Cutting Machine General Technical Introduction and Parameter:
1. Cutting type: Metal Square tube and metal rectangle tube.
2. Figures can be cut: variety of graphics.
3. Control Axes: 4 axies.
4. Square tube / Rectangle tubes Diameter: 40*40mm-240*240mm or customized.
5. Cutting way: plasma and or flame
6. Pipe length: ≥3m, 6m, 9m, 12m or customized
7. Pipe clamping method: Chuck
8. Square tube and rectangle tube meterial: carbon steel, stainless steel, zinc, aluminium etc
9. Control System: Industrial PC, 4-axis controlled, with macro library.

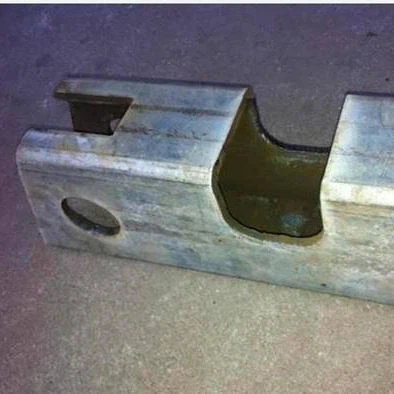

Square Pipe Cutting Machine Displaying:
Square Pipe Cutting Machine Parameter:
|
No. |
Item |
Para |
|
1 |
Cutting pipe diamter |
Φ=40*40mm-240*240mm |
|
2 |
Pipe wall thickness |
6～25mm |
|
3 |
Flame cutting thickness |
δ1=6～40mm |
|
4 |
Cutting pipe length |
L1=3000mm,6000mm,9000mm (can be customized) |
|
5 |
Required workpiece ovality |
≤1% |
|
6 |
Cutting speed |
V≤6000mm/min |
|
7 |
Pipe / tube material |
steel, stainless, zinc etc |
|
8 |
Carry capacity |
3000KG |
