Portable cnc plasma flame cutting machine is we Meisar CNC continuous improved new model, which has been widely recognized by a wide range of users, the following to briefly introduce the advantages of portable cnc plasma flame cutting machine:
Portable cnc plasma flame cutting machine Introduction:
1. Stable: We all know that portable CNC cutting machine is the cantilever type, so many users buying worry about its stability, edge cutting will appear jitter, so Meissar CNC in particularly to improve, the crossbar using hard aluminum alloy, strengthen the integrated, and the back added 40 wide stainless steel reinforced ribs, so that the operation is more stable, There is no jitter. The maximum cutting range can be up to 2 meters, greatly satisfying the cutting needs of the sheet.
Portable cnc plasma flame cutting machine inner structure
2. Vertical rail hard aluminum alloy 6063, with good balance, small operating inertia, strong stability performance, long service life and so on.
3. Lifting device using improved precision wire rod transmission, rise and fall uniform speed, universal torch gripper, so that the conversion of cutting mode more convenient and simple, the solenoid valve to add insulation bezel, so that splash hot spot will not damage to the machine components.
4.The whole machine line layout is reasonable, each line has coils show that the future maintenance is more convenient and clear, the main box has Meisar independent researched and developed relay board, protection equipment in the case caused by external factors automatically cut off the opening protection mode.
5. FLSK the most sophisticated special numerical control system, simple operation and powerful. Smartnet software, can achieve automatic common edge, automatic layout, dongle.
6. The solenoid valve Taiwan Airtac original, Taiwan Xinda relay, South Korea Sanshan original import hose, 39V bearing single bear capacity of up to 200KG.
7. HP-105 plasma arc pressure torch height adjuster.
8. The equipment warranty is one year.

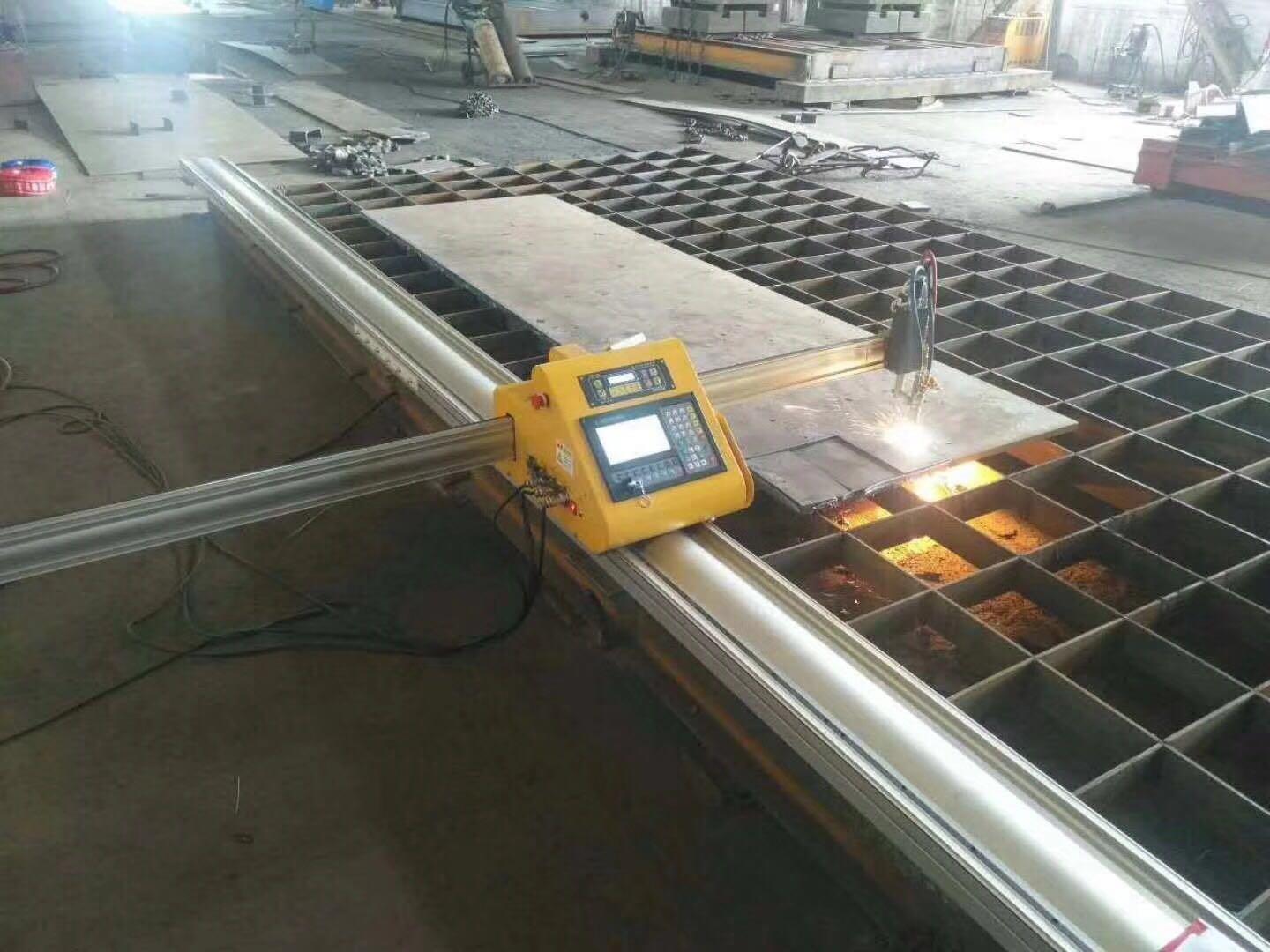

At site portable cnc plasma flame cutting machine Displaying:
*Tips:When do I choose a portable cnc plasma flame cutting machine?
The following need to be clearly defined before selecting a portable CNC cutter:
The parameters ★ the width and length of the steel plate when cutting (not the size of the cut-out work parts): this parameter is clearly suitable for your model; portable CNC cutting machine: suitable for steel plate width of less than 2 meters.
The material of the steel plate: This parameter determines the CNC cutting method, CNC cutting machine method has two uses: flame and plasma.
The thickness of the cutting steel plate: this parameter further clarifies the cutting method, as well as the choice of plasma power supply when plasma cutting.
Portable cnc plasma flame cutting machine Parameters:
| Modes of Cutting Plasma | Modes of Cutting Flame | |
| Cutting model | Plasma | Flame |
| Cutting Speed | 0-6500mm/min | 0-3500mm/min |
| Cutting Thickness | Depending on the plasma power source | 6mm-150mm |
| Torch Height Control | Automatic voltage sensing THC | Electric |
| Compatibility | Favorable all major brands plasma | Built-in oxy-fuel torch with propane nozzle(acetylene nozzles can be provided on request) |
