What kind of Hypertherm products we can adopt?

We Hypertherm Plasma CNC Cutting Machines can adapt Hypertherm supplied brand parts.

Hypertherm supplies various kinds of plasma cutting parts, from Hypertherm Connect CNC systems, to torch Hypertherm height controllers to Hypertherm plasma sources.

We Hubei Meiar CNC Technology Co., Ltd. manufactures whole sets of CNC plasma cutting machines and can customize the CNC plasma cutting machines as your preferred Hypertherm brand parts.



Hypertherm Plasma CNC Cutting Machine Features

1.All of our machines and Hypertherm brand parts, including the CNC system, torch height controller, and plasma source, comply with international standards. When replacing these parts, you only need to change the parts themselves; no CAM adjustments, molding, drilling, or other special processing are required.



2.It is easy to replace consumables. Hypertherm is one of the most renowned plasma brands in the world, making it simple to find cutting-edge consumables, whether locally or online.



3.The machine exhibits all the characteristics of the Hypertherm brand: high production efficiency, high machining precision, and stable machining quality.



4.This machine is energy-saving, noiseless, and safe.

5.Hubei Meiar CNC Technology Co., Ltd. manufactures a Hypertherm Plasma CNC Cutting Machine with a compact structure, reasonable design, light weight, small volume, and ease of movement, making it suitable for both indoor and outdoor use.



6.The design and manufacturing are appropriate and well-coordinated.

7.This machine is widely used in various industries, such as locomotives, automobiles, shipbuilding, and pressure vessels.

8.The Hypertherm Plasma CNC Cutting Machine also offers the advantages of low maintenance costs and a long service life.



Hypertherm Plasma CNC Cutting Machine Product Display and Specification

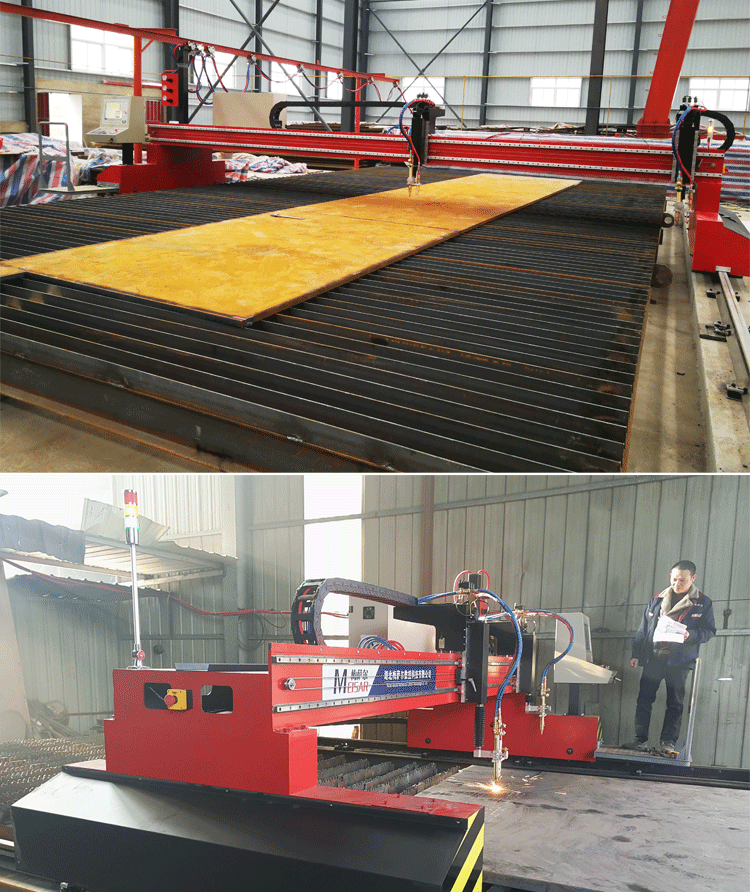

Heavy gantry cnc plasma and oxyfuel cutting machine MS-GH with Hypertherm plasma parts
Beam Width (X axis)	4.0m-8.0m
Rail Length (Y axis)	6m(can be lengthened)
Effective Cutting Width	3.0m(3.2m for single torch)
Effective Cutting Length	4.0m
Cutting Mode	Flame and/or Plasma
Cutting Material	Carbon Stainless Alloy steel, Aluminium, Zinc etc
Flame Cutting Thickness	5-300mm
Plasma Cutting Thickness	Depending on the Hplasma generator
Cutting Speed	0-6500mm per minute
Optional item	Extra plasma/flame cutting head
	Hypertherm NC Plasma generator, Power Max, HPR, MAX Hypertherm Connect CNC Hypertherm Arcglide THC



Optional Hypertherm Plasma Parts:

• Optional Plasma Source Powermax 105 / Powermax 125/ MAX 200 / HPR, XPR

Input voltages	CSA	200-600 V, 3-PH, 50/60 Hz
	CE	400 V, 3-PH, 50/60 Hz 200-400 V, 3-PH, 50/60 Hz
	CCC	380 V, 3-PH, 50/60 Hz
Input current @ 16.8 kW	200/208/240/380/400/480/600 V, 58/56/49/28/25/22 A
Output current	30 - 105 A
Rated output voltage	160 VDC
Duty cycle @ 40°C (104°F)	80% @ 105 A
Open circuit voltage (OCV)	200-600 V CSA: 300 VDC 380 V CCC and 230-400 V CE: 288 VDC 400 V CE: 292 VDC
Dimensions with handles	592 mm D; 274 mm W; 508 mm H (23.3" D; 10.8" W; 20.0" H)
Weight with 7.6 m (25') torch	200-600 V CSA: 45 kg (100 lbs) 380 V CCC/400 V CE: 41 kg (90.4 lbs) 230-400 V CE: 45 kg (100 lbs)
Gas Supply	Clean, dry, oil-free air or nitrogen
Recommended gas inlet flow rate / pressure	Cutting: 217 l/min (460 scfh) @5.9 bar (85 psi) Gouging: 227 l/min (480 scfh) @4.8 bar (70 psi)
Input power cable length	3 m (10') *
Power supply type	Inverter - IGBT
Engine drive requirement	30 kW for full 105 A output
Certifications	CSA-certified for use in the Americas and Asia, except China. CE, C-Tick, CU/GOST, Ukr, and Serbian - for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted. CCC for use in China.
Warranty	Power supplies have a 3-year warranty and torches a 1-year warranty.



• Optional Plasma CNC Controller EDGE Connect CNC system

EDGE^® Connect, Hypertherm's Computer Numeric Control (CNC) platform, delivers unmatched reliability, powerful embedded capabilities, and a high level of customizability. Based on our proprietary, industry-leading Phoenix^® CNC platform, the system offers new, advanced software features – including ProNest^® CNC automatic nesting delivering SureCut™ technology – along with enhanced hardware.

For easy set up, changes, and upgrades, EDGE Connect CNCs can be configured in the field with software specific to the cutting machine application. The easy-to-use system combines advanced cutting performance with an intuitive graphical interface, and supports plasma, oxyfuel, and waterjet applications.



1. With Patented CutPro^® Wizard, even new operators can be cutting production parts in less than five minutes
2. On-screen Software Operator's Console (Soft OpCon) allows easy setup and operation of cutting station and manual motion
3. Integrated communications with plasma and torch height control systems deliver automated and expert control using installed factory or custom cut charts
4. Custom cut charts can be created and controlled in the part program or made available to the CutPro Wizard
5. EDGE Connect runs on the Windows^® 10 Enterprise operating system



Optional Plasma height controller / Torch / CAM softwares

1. Sensor torch height control

Specifically designed to integrate with Hypertherm's CNC solutions, the Sensor^® torch height control (THC) is a full-featured torch height control system that can significantly increase the productivity and profitability of your shape cutting operation.

The easy-to-use, easy-to-install unit offers integrated CNC software features and closed loop servo control, as well as the latest advances in system integration and hardware reliability.

2. CAD/CAM software

Spend more time cutting and less time programming. Easy-to-use Hypertherm CAD/CAM software for nesting, robotic, CNC, and more, can help you achieve greater automation, efficiency, and profitability.
