Hypertherm CNC plasma cutting machine Product Introduction
Hypertherm cnc plasma cutting machine, depends on MeisarCNC high precision gantry with Hypertherm CNC system and or Hypertherm plasma generator.
Hypertherm CNC plasma cutting machine gantry and CNC Advantages
1. Computer Numeric Control (CNC) platform, delivers unmatched reliability, powerful embedded capabilities, and a high level of customizability.
2. New, advanced software features–along with enhanced hardware.
3. The easy-to-use system combines advanced cutting performance with an intuitive graphical interface, and supports plasma, oxyfuel heads applications.
4. With Patented CutPro Wizard, even new operators can be cutting production parts in less than five minutes.
5. On-screen Software Operator's Console allows easy setup and operation of cutting station and manual motion
6. Integrated communications with plasma and torch height control systems deliver automated and expert control using installed factory or custom cut charts.
7. Custom cut charts can be created and controlled in the part program or made available to.
8. Runs on the Windows® 10 Enterprise operating system.
9. Reduce the workload of workers and make cutting work more intelligent with more complex cutting function.
10. The Hypertherm Plasma Source also has the advantages of small size, stable performance and long service life.
Hypertherm CNC plasma cutting machine plasma generator MAXPRO200 Advantages
1. LongLife plasma generator
2.heavy-duty, high capacity automated cutting and gouging applications.
3. The easy-to-use system operates with either air, oxygen, or nitrogen plasma gas, and combines fast cutting speeds and quick process changes to maximize productivity.
4. Advanced Hypertherm consumable designs – including LongLife® technology – improve cut consistency and significantly increase consumable life to lower your cost per part.
Operating data
-
Virtually dross-free cutting capacity - mild steel 20 mm (3/4")
-
Production pierce capacity - mild steel 32 mm (1 1/4")
-
Severance* - mild steel 75 mm (3")
-
Bevel - 200 amp consumables support 45° bevel capability
-

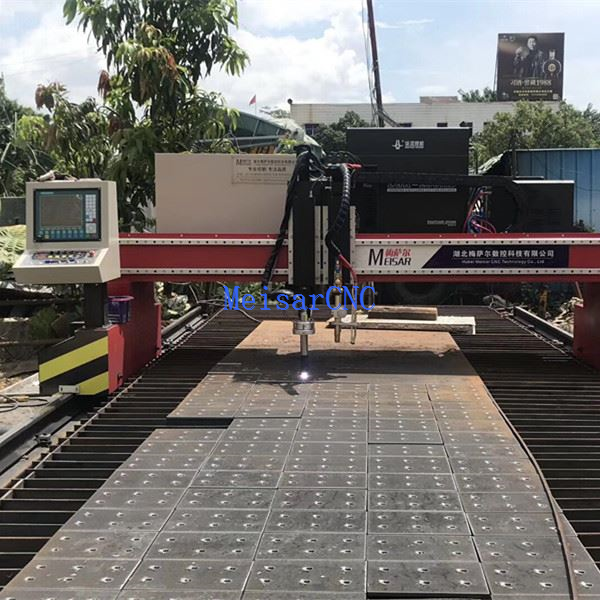

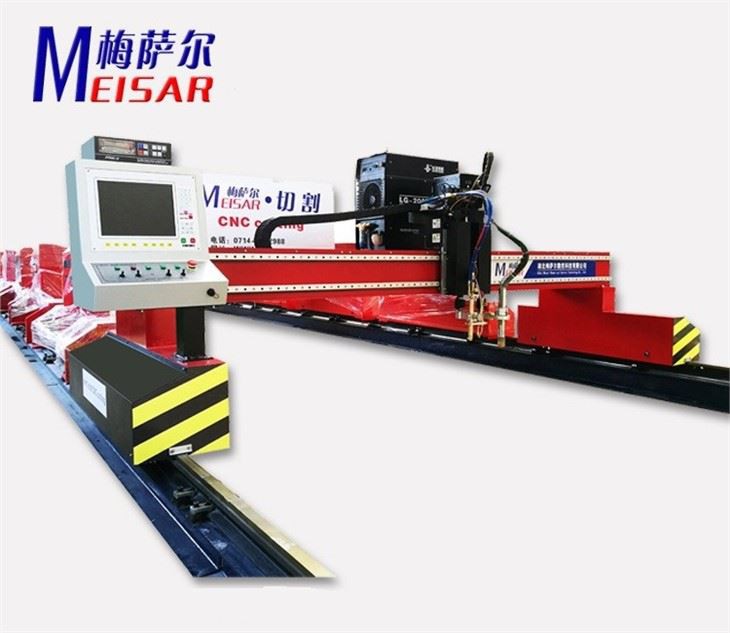

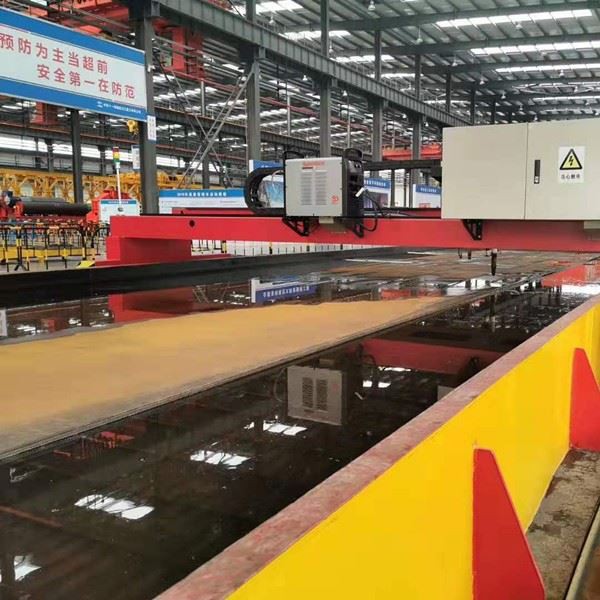

Hypertherm CNC plasma cutting machine Product Display
Hypertherm CNC plasma cutting machine gantry CNC Parameter Outlook
|
Hypertherm cnc plasma cutting machine MS-G |
|
|
Beam Width (X axis) |
4.0m-10.0m |
|
Rail Length (Y axis) |
6m(can be lengthened) |
|
Effective Cutting Width |
3.0m(3.2m for single torch) |
|
Effective Cutting Length |
4.0m |
|
Cutting Mode |
Flame and/or Plasma |
|
Cutting Material |
Carbon Stainless Alloy steel, Aluminium, Zinc etc |
|
Flame Cutting Thickness |
5-300mm |
|
Plasma Cutting Thickness |
Depending on the Powermax 125 |
|
Cutting Speed |
0-6500mm per minute |
|
Optional item |
Extra plasma/flame cutting head |
|
NC Plasma generator Powermax 125, MaxPro200 etc |
|
