As one of the advantures of plasma cutting technology, Hypertherm has a series of plasma products, mainly are parts and they are:
1.Hypertherm plasma generators, includes powermax 105, powermax 125, maxpro200, High definition plasma HPR 260XD.....
2.Hypertherm plasma CNC controlling system, includes Edge connect CNC.
3.Hypertherm plasma THC, Sensor THC, arc glide THC etc.
We are the professional whole CNC plasma cutting machine manufacturer, if clients insist in adopting certain Hypertherm brand parts, we can do it.
Plasma Cutting Machine With Hypertherm Features
1. The Cnc Cutting Machine has the characteristics of Hypertherm CNC or THC too.
2. Hypertherm has compact structure and reasonable design, light weight and small volume, easy to move and suitable for indoor and outdoor use, compatiable, stable feature, says, powermax series, MAXPRO200, HPR etc.
3. Application is widely, our machine wiht Hypertherm can be used in locomotive, automobile, shipbuilding, pressure vessel and other industries.
4. Except for service from our company, because widely Hypertherm application, partial countries also have Hypertherm service.
Plasma Cutting Machine With Hypertherm real Product Display

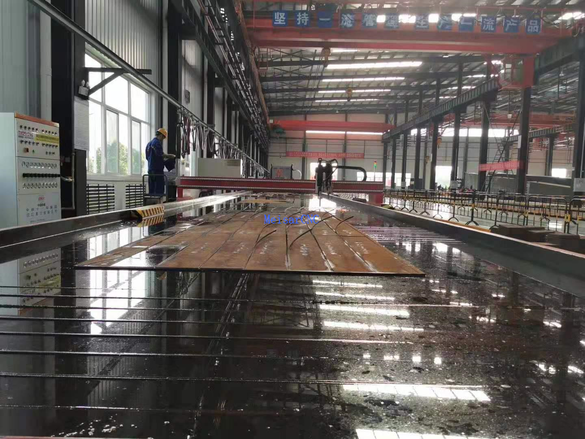

Above this machine is our gantry type CNC cutting machine with Hypertherm plasma generator Powermax 125, here details:
|
Heavy gantry cnc cutting machine MS-G with Hypertherm Plasma generator Powermax 125 |
|
|
Beam Width (X axis) |
5.0m |
|
Rail Length (Y axis) |
20.0m |
|
Effective Cutting Width |
4.0m(2.2m for single torch) |
|
Effective Cutting Length |
18.0m |
|
Cutting Mode |
Plasma added Flame |
|
Cutting Material |
Carbon steel, Stainless steel, Alloy steel, Aluminium, Zinc etc |
|
Flame Cutting Thickness |
5-200mm |
|
Plasma Cutting Thickness |
Depending on the Hypertherm plasma generator |
|
Cutting Speed |
0-6500mm per minute |
Heavy gantry cnc cutting machine MS-G with Hypertherm Plasma generator Powermax 125, Adopted Hypertherm Plasma Source Powermax 125 specification:
| Input voltages | CCC | 380 V, 3-PH, 50/60 Hz |
|---|---|---|
| Input current @ 21.9 kW | 300/400/480/600 V, 38/36/31/24 A | |
| Output current | 30 - 125 A | |
| Rated output voltage | 175 VDC | |
| Duty cycle @ 40°C (104°F) | 100% @ 125 A | |
| Open circuit voltage (OCV) |
|
|
| Dimensions with handles | 592 mm D; 274 mm W; 508 mm H (23.3" D; 10.8" W; 20.0" H) | |
| Weight with 7.6 m (25') torch |
|
|
| Gas Supply | Clean, dry, oil-free air or nitrogen | |
| Recommended gas inlet flow rate / pressure |
Cutting: 260 l/min (550 scfh) @5.9 bar (85 psi) Gouging: 212 l/min (450 scfh) @4.1 bar (60 psi) |
|
| Input power cable length | 3 m (10')* | |
| Power supply type | Inverter - IGBT | |
| Engine drive requirement | 40 kW for full 125 A output | |
| Certifications | CSA-certified for use in the Americas and Asia, except China. CCC for use in China. |
|
| Warranty | Power supplies have a 3-year warranty and torches a 1-year warranty. | |
Heavy gantry cnc cutting machine MS-G with Hypertherm Plasma generator Powermax 125 Adopted Hypertherm Plasma Source Powermax 125 cutting Capacity
| Cutting Capacity | Cutting Thickness | Cutting speed |
|---|---|---|
| Recommended | 38 mm (1-1/2″) | 457 mm/min (18 ipm) |
| 44 mm (1-3/4″) | 250 mm/min (10 ipm) | |
| Severance (hand cutting) | 57 mm (2-1/4″) | 125 mm/min (5 ipm) |
| Pierce * | 25 mm (1″) |
